Metal Corrugated Flexible Hose

Our manufactured metal flexible hose, braided flexible hose, corrugated flexible hose, etc. has been specifically manufactured to work with great amount of accuracy in it's application. Our corrugated metal flexible hoses are cost effective, long lasting & durable in nature.

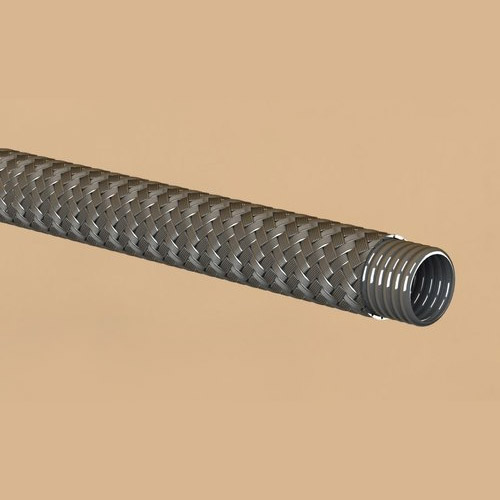

Metal Flexible Hose
Ask for Price
Braided Flexible Hose
Ask for Price
Corrugated Flexible Hose
Ask for Price

Specifications
We manufacture & offer a wide range of corrugated flexible hose and wire braiding in authentic stainless steel grades 304, 304L, 321, 316L and 316Ti. We also cater to various requirements through our customized products of stainless steel hose in flexibility class A, B and C in sizes ¼" (6mm) to 12" (300mm).

We are well equipped to specifically design and manufacture metal hose of much higher pressure ratings with increased wall thickness of tube and special braidings. Hydraulic forming process is used in the production of all hose sizes above 15mm.

Two-Ply Hose
Alfa is engaged in the manufacturing of 2-Ply hoses with single, or multi-ply braids for special & specific applications, where high temperature and high pressure is required.

The pressure ratings of class B flexibility (ALFA B-FLEX ) hose are given in the following table

Advantages of Flexible Metal Hose

Testing Facilites
To deliver the finest quality products, we have comprehensive testing facilities. The testing is carried out as per BS 6501- Part 1 as well as ISO 10380 standards. A look at few of the prominent tests conducted by us:

ALFA FLEXITUBES
SPECIFICATIONS - ALFA B - FLEX METAL HOSE
Nominal Size Single Braid Double Braid
Inch mm. Working pressure Bar. Test pressure Bar. Minimum Bend Radius Working pressure Bar. Test pressure Bar. Minimum Bend Radius
Static (mm) Dynamic (mm) Static (mm) Dynamic (mm)
1/4" 6 80 120 30 100 140 210 40 120
3/8" 10 70 105 40 150 120 180 50 160
1/2" 12 64 96 40 200 100 150 60 220
5/8" 16 60 90 50 200 90 135 60 220
3/4" 20 50 75 70 200 90 135 80 250
1" 25 50 75 90 200 80 120 100 260
1-1/4" 32 40 60 110 250 60 90 120 350
1-1/2" 40 32 50 130 260 50 75 160 400
2" 50 26 40 175 350 40 60 180 410
2-1/2" 65 20 30 200 410 32 50 200 450
3" 80 16 25 210 450 25 40 220 560
4" 100 14 21 230 560 20 30 260 660
5" 125 12 18 280 660 18 30 300 815
6" 150 10 15 320 815 15 25 420 1015
8" 200 10 15 440 1015 15 25 540 1220
10" 250 8 12 560 1220 12 20 620 1420
12" 300 6 9 660 1420 9 15 750 1650
